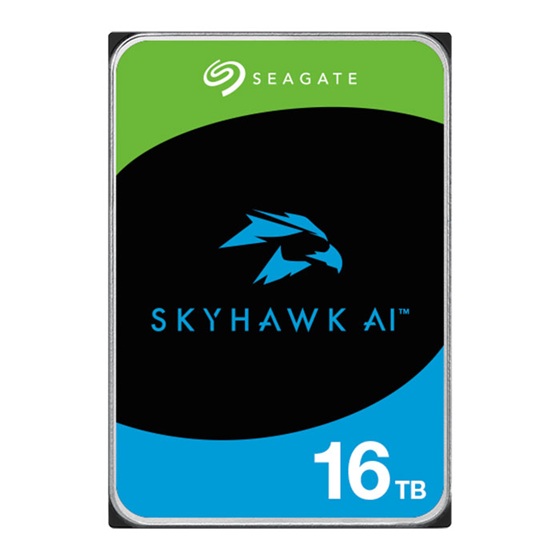

Seagate 16TB 3.5″ SkyHawk AI Surveillance, SATA 6Gb/s, CMR, max. DTR 285/272mb, HDD, 512MB Cache, 7200RPM, 5Years Warranty

Seagate® SkyHawk™ AI 24TB is a video-optimized drive designed for NVRs, with artificial intelligence (AI) for edge applications.

Specifications
Capacity 16TB
Standard Model Number ST16000VE004
Interface SATA 6Gb/s
Recording Technology CMR
Drive Design Helium

Features and Performance
Drive Bays Supported Unlimited
AI Channels 32
AI Real Time Capture Events/Sec 1,2 Up to 120
AI Real Time Compare Events/Sec 1,2 Up to 96
HD Cameras Supported3 Up to 64
RV Sensors Yes
Max Data Transfer Rate (MB/s) 285/272
Cache (MB) 512MB/s

Reliability/Data Integrity

Tarnish Resistant Yes
Load/Unload Cycles 600,000
Nonrecoverable Read Errors Rate, Max 1 per 10E15
Power-On Hours per year 8760
Workload Rate Limit (WRL) 4 550
Mean Time Between Failures (MTBF) (hours) 2500000hr
Warranty, Limited (years) 5 5
Rescue Data Recovery Services (years) 6 3

Power Management
Startup Current, Typical (12V, A) 2.0A
Average Operating Power 7.8
Idle Power Average (W) 6.3 W
Standby Mode/Sleep Mode, Typical (W) 1.1/1.1W
Voltage Tolerance (5V) ±5%
Voltage Tolerance (12V) ±10%

Environmental/Temperature
Operating Temperature (ambient, min °C) 5°C
Operating Temperature (drive reported, max °C)5 65°C
Nonoperating Temperature (ambient, min / max °C) -40°C

Physical

Height (mm/in) 26. 26.1mm/1.028in
Width (mm/in, max) 26.1mm/1.028in
Depth (mm/in, max) 147.0mm/5.787in
Weight (g/lb, typical) 685g/1.51lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8
