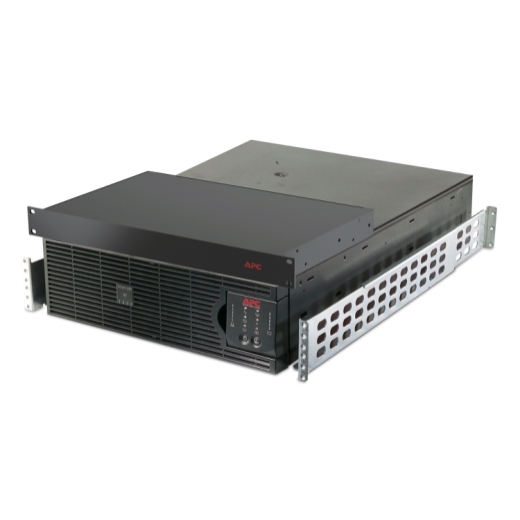

APC Smart-UPS RT 2200VA 230V – Marine
Ruggedized power protection for shipboard and other transportation applications.

Main
Run time for load1540W
21min 17s

Main Input Voltage230 V

Other Input Voltage
220 V
240 V

Main Output Voltage
230 V

Other Output Voltage
220 V
240 V

Rated power in W
1540 W

Rated power in VA
2200 VA

Input Connection Type
BS1363A British
IEC 60320 C20
Schuko CEE 7 / EU1-16P

Output connection type
8 IEC 60320 C13
2 IEC Jumpers
2 IEC 60320 C19

Number of rack unit
3U

Cable length
2.50 m

Number of cables
1

Battery type
Lead-acid battery

Number of battery filled slots
2

Battery recharge time
2.5 h

Number of battery replacement quantity
1

Battery charger power
382 W rated

Battery life
3…5 year(s)

Replacement battery
APCRBC140

Output
Maximum configurable power in VA
2200 VA

Maximum configurable power in W
1540 W

Output frequency
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised
50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised

Wave type
Sine wave

Harmonic distortion
Less than 3 %
Crest factor
3 : 1

Conformance
Product certifications
CE
DNV
KCC

Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental
Ambient air temperature for operation
0…55 °C

Relative humidity
0…95 % non-condensing

Operating altitude
0…10000 ft

Ambient air temperature for storage
-15…45 °C

Storage Relative Humidity
0…95 % non-condensing

Storage altitude
0.00…15240.00 m

Acoustic level
55 dBA

Heat dissipation
609 Btu/h

IP degree of protection
IP20

Surge Protection and Filtering
Surge energy rate
555 J

Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
