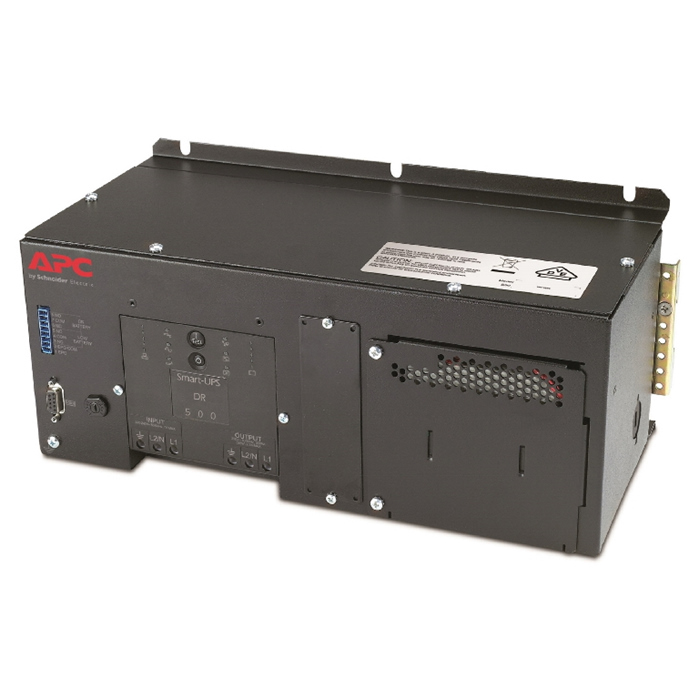

APC DIN RAIL – PANEL MOUNT UPS W STANDARD BATTERY 500VA 230V

Proven Industrial UPS power protection for control applications and harsh environments.
Main Input Voltage 230 V
Other Input Voltage 220 V, 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V, 240 V
Rated power in W 325 W
Rated power in VA 500 VA
Output connector type Hard wire 3-wire (H N + E) 1
Battery type Lead-acid battery
Provided equipment- CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable
Input voltage limits 151…302 V adjustable, 160…285 V
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Harmonic distortion Less than 5 %
Maximum configurable power in VA 500 VA
Maximum configurable power in W 325 W
UPS type Line interactive
Efficiency 94 % (full load)
Output frequency 47…53 Hz for 50 Hz nominal sync to mains, 57…63 Hz for 60 Hz nominal sync to mains
Acoustic level 55 dBA
Heat dissipation 90 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 0…40 °C
ambient air temperature for storage -15…45 °C
Storage altitude 0.0000000000…15240.0000000000 m
IP degree of protection IP20
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %
