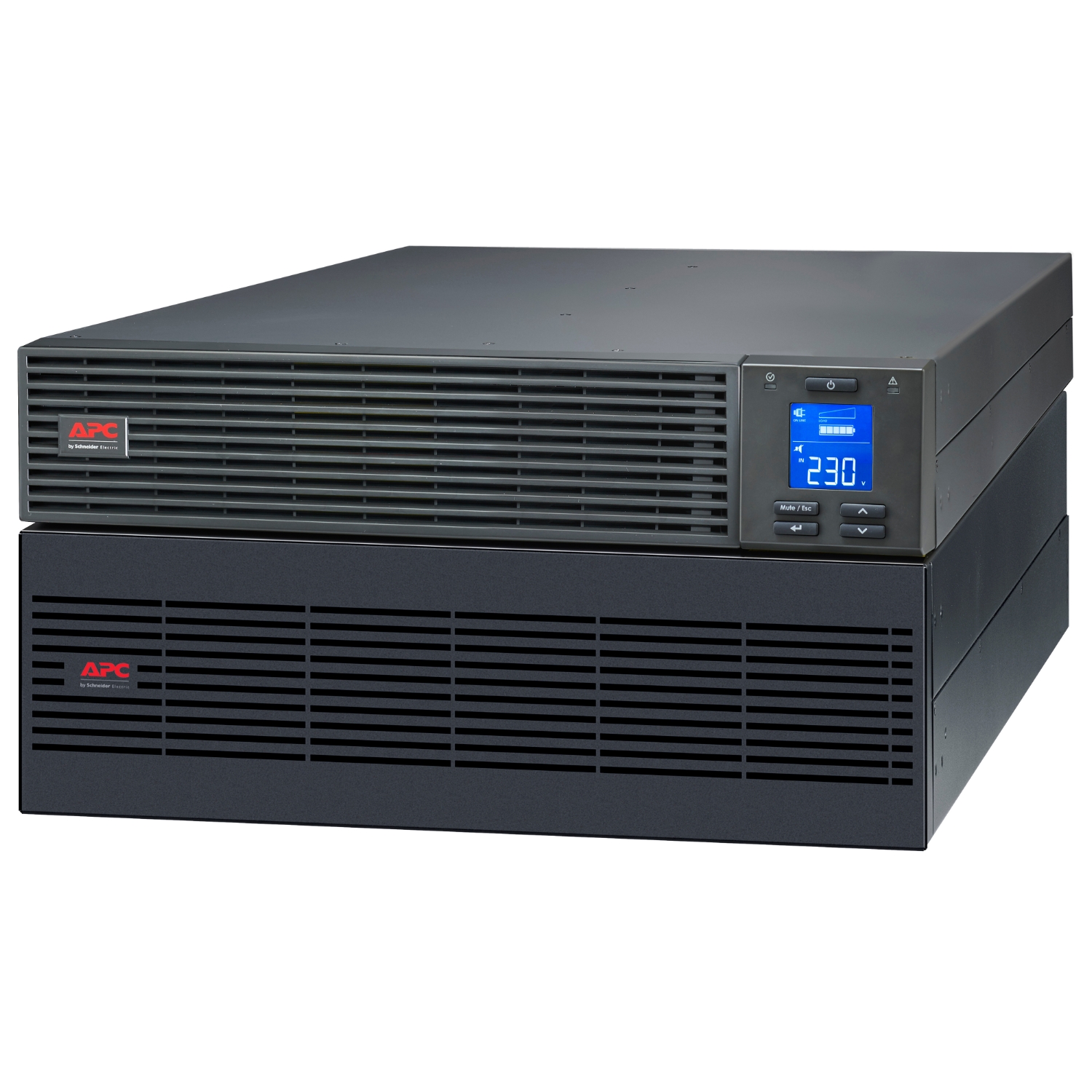

APC Easy UPS On-Line, 6kVA/6kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/O rail kit

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.
Main Input Voltage 230 V
Other Input Voltage 220 V, 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V, 240 V
Rated power in W 6000 W
Rated power in VA 6000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Number of rack unit 5U
Provided equipment 1 USB cable, 1 RS-232 configuration cable, 2 rack mounting brackets, 1 external battery pack, 1 battery cable, user manual
Range of product Easy UPS On-Line
Input voltage limits 110…300 V 60 % load 176…300 V full load
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40…70 Hz auto sensing
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -15…60 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 55 dB
Heat dissipation 1172 Btu/h
IP degree of protection IP20

Compatible NMC -AP9544, SRVSMB001, VGL9901I

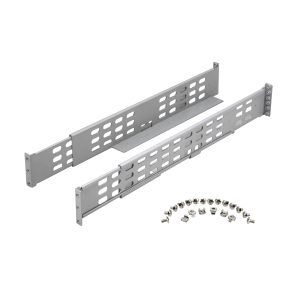

Compatible Mounting- SRVRK1, SRVRK2
Compatible Batteries- SRV240RLBP-9A
