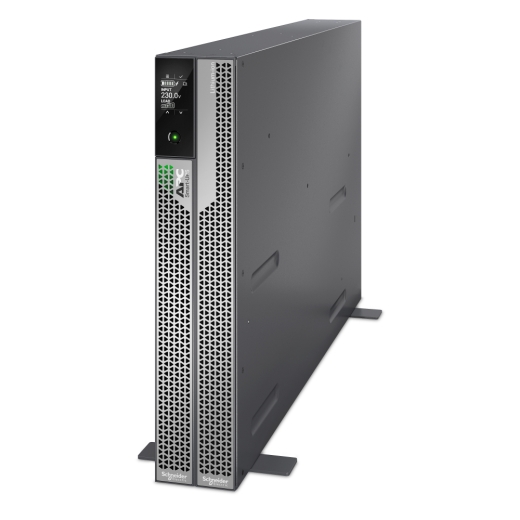

APC Smart-UPS Ultra On-Line, 5000VA, Lithium-ion, Rack/Tower 2U, 230V, Hardwired 3-Wire Output, Network Card, Extended runtime, W/rail kit

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5KVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hardwired input and Hardwired 3-Wire output. It embeded Management Card that enables graceful shutdown of physical servers, virtual machines HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Main Input Voltage 230 V
Other Input Voltage 220 V
Main Output Voltage 230 V
Other Output Voltage220 V
Rated power in W 5000 W
Rated power in VA 5000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Number of rack unit2U

Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.…15240 m
Acoustic level 55 dBA
Heat dissipation 931 Btu/h
IP degree of protection IP20

Provided equipment
USB cable
Front cover
Earth terminal block
Temperature sensor
Stabilization feet
Rail extension
2P-3P connector

Communications Management
Preinstalled device Network management card
Alarm Audible and visible alarms : prioritized by severity
Emergency power off Yes

Compatible Sensors- AP9335T, AP9335TH
Compatible Batteries- SRTL180RM2UBP
Compatible Smart Slot – AP9810
Service Bypass Panels – SBP5000RMI2U, SBP6KRMI2U
Compatible Mounting -SRTRK4
Wireless Adaptor – AP9834
Extension cable – SRTL006
