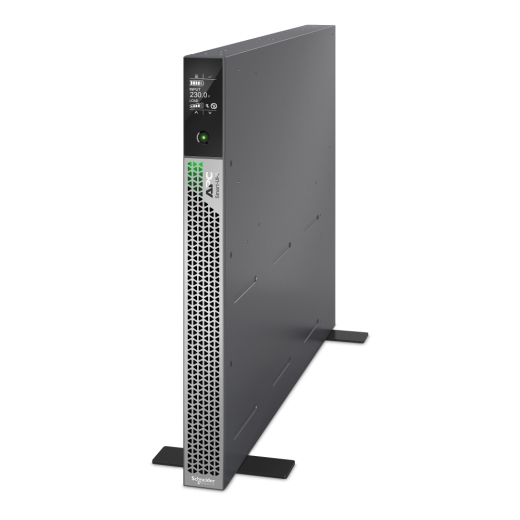

APC Smart-UPS Ultra On-Line, 2200VA, Lithium-ion, Rack/Tower 1U, 230V, 3x C13, 2x C19 IEC outlets, Network Card, Extended runtime, W/rail kit

With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
Run time for load 2200 W
Min-max: 220-2200 W 6min 38s
Max. Capacity Used 100 %
Main Input Voltage 230 V AC
Other Input Voltage 230 V
Main Output Voltage 230 V AC
Other Output Voltage 230 V
Rated power in W 2200 W
Rated power in VA 2200 VA
Input Connection Type- BS1363A British, IEC 320 C19/C21, Schuko CEE 7 / EU1-16P
Output connection type- 3 IEC 320 C13, 2 IEC 320 C19
Number of rack unit 1U
Cable length 2.44 m
Number of cables 1
Battery type Li-Ion (Lithium-Ion)
Provided equipment- RJ45 cable, Rack mounting brackets, Network cable, Terminal, Stabilization feet, Safety guide, Rail extension, Washer, USB cable, Screws
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dB
Heat dissipation 325 Btu/h
IP degree of protection IP20

Mounting mode- Rack mounted with kit
Replacement Battery -APCRBC173-LI
Compatible Service bypass panels- SBP3000RMHW, SBP3000RMI
Compatible Sensors- AP9335T, AP9335TH
Compatible Batteries- SRTL50RMBP1U-LI
Compatible NMC – AP9810
