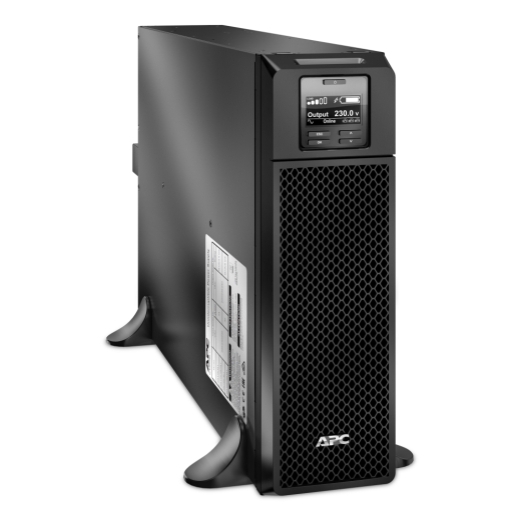

APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4500W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. It comes with hard wire 3-wire input, 6x IEC 60320 C13 and 4x IEC 60320 C19 outlets, and 2x IEC jumper cables. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Run time for load 4500 W 3min 59s
Min-max: 450-4500 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 4500 W
Rated power in VA 5000 VA
Output connection type 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
Provided equipment- CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 931 Btu/h
IP degree of protection IP20
Mounting mode- Rack mounted with kit
Replacement Battery -APCRBC140
Compatible Service bypass panels-SBP5000RMI2U, SBP6KRMI2U
Compatible PDU-AP6020A, AP7586, AP7821B, AP9565
Compatible Sensors- AP9335T, AP9335TH
Compatible Batteries-SRT192BP
