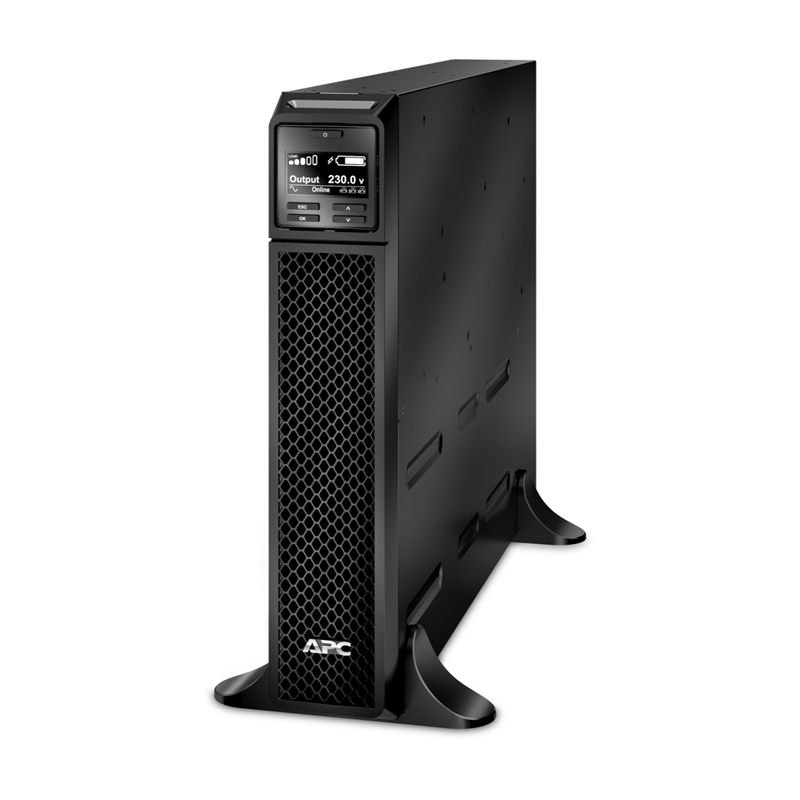

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 2200VA/1980W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rack/tower convertible SRT is external battery compatible for more runtime during prolonged outages. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 1980 W
Rated power in VA 2200 VA
Input Connection Type BS1363A British
IEC 60320 C20 Schuko CEE 7 / EU1-16P
Output connection type- 8 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19
Cable length 2.44 m
Number of cables 1
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 703 Btu/h
IP degree of protection IP20
Mounting mode- Rack mounted with kit
Replacement Battery – APCRBC141
Compatible Service bypass panels- SBP3000RMHW, SBP3000
Compatible PDU- AP6003A, AP6015A, AP6020A, AP6120A, AP7552
Compatible Sensors- AP9335T,AP9335TH
Compatible NMC -AP9613,AP9620, AP9640, AP9641, AP9643, AP9810
Compatible Mounting- SRTRK3, SRTRK4
