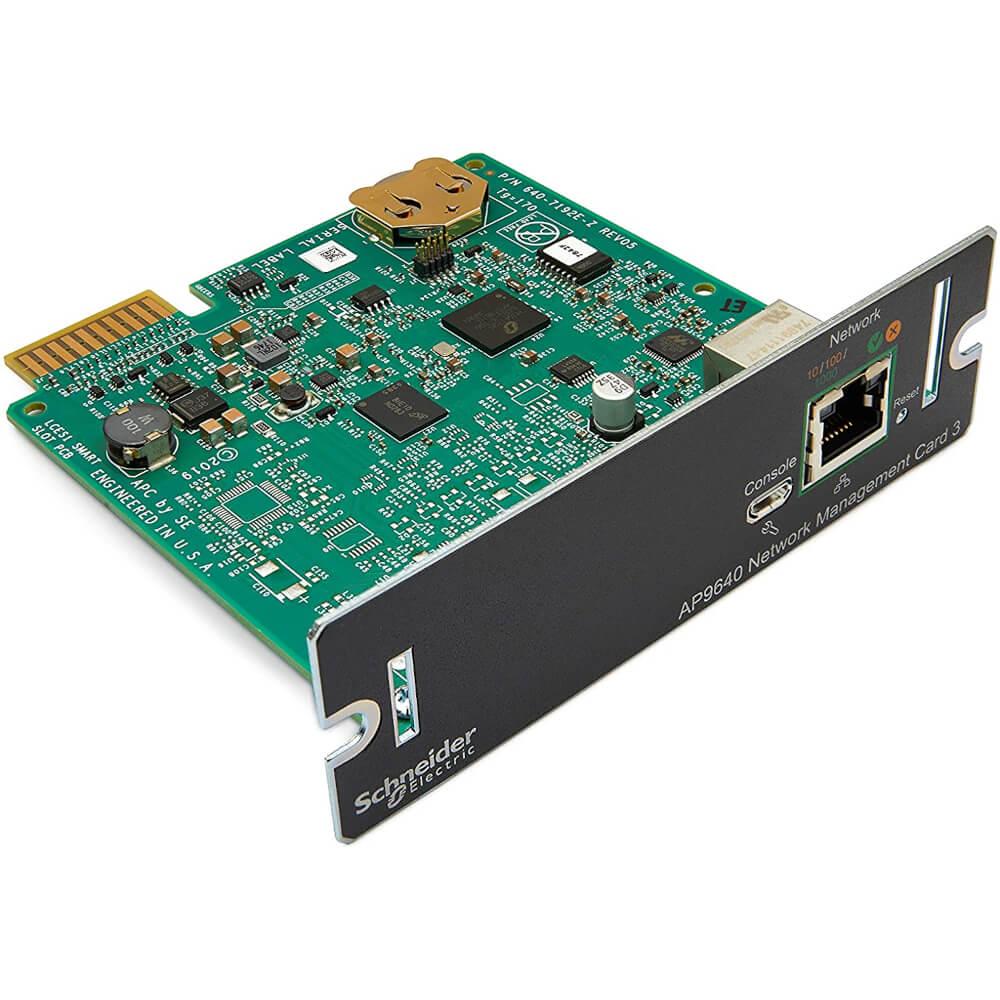

APC UPS Network Management Card 3

This APC UPS Network Management Card enables remote monitoring and control of individual Single Phase and Three Phase APC UPS via secure network browsers or external command line interfaces. The NMC is connected to the UPS via a web browser, command line interface, or SNMP. The flash upgradeable firmware installs maintenance releases of firmware remotely using FTP. The Network Management Card provides multiple-user access, pre-loaded multiple language support, advanced security protection, and data and event log space. The NMC card with PowerChute Network Shutdown provides unattended, graceful shutdown of physical servers, virtual machines, and HCI clusters. The network card supports user-selectable password with strong password rules and a reset password mechanism.

Provided equipment- User manual, USB cable
Ambient air temperature for operation 0…45 °C
Operating altitude 0…10000 ft
Relative humidity 0…95 %
Ambient air temperature for storage -5…45 °C
Storage altitude 0.00…15240.00 m
Storage Relative Humidity 0…95 %
Standards- EN 55022 class A, EN 55024, ICES-003
Product certifications- AS/NZS 3548 (C-Tick) class A, FCC part 15 class A, GOST, VCCI class A
Authentication Radius

Mounting mode- Not rack mountable
